Bolymedia-Folder

SOLAR
HOME / SOLAR / Folder

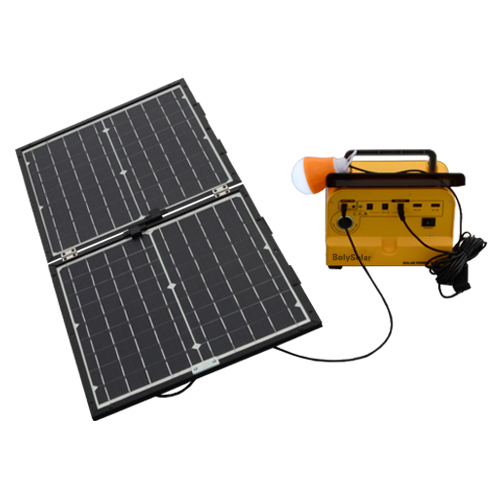

A mobile power solution for outdoor and indoor use

Small size solar panel, light weight, portable design
Metal backpack cools down quickly so to maintain the high efficiency of PV module
Work with mobility, very convenient for outdoors emergency use
Easy to replace pointed head18650 batteries
Full charged batteries can be taken out for other use
Charges up to six devices by one time
Offline power solution for outdoor and indoor use

Instruction PDF

Technical Parameters

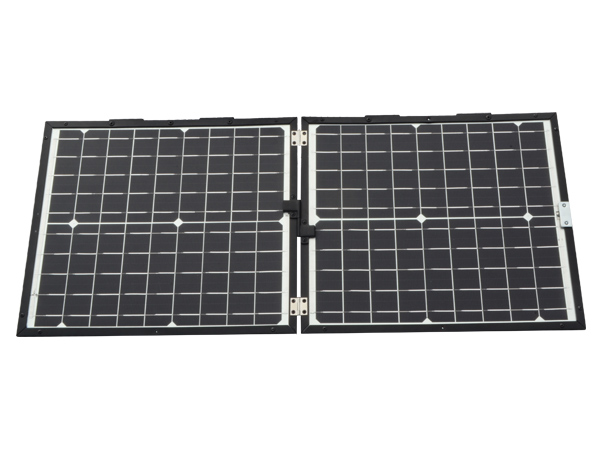

Folder Solar Panel
Cell type	Polycrystalline
Cell quantity	36pcs
Folded Dimension	40034860mm
Unfolded Dimension	79734830mm
Weight	2.3kg
Power	42W
Output Voltage	18V
Output Current	2.3A（max）
Power range	±3%
Cable length	2M
Mobility Battery
Battery type	Pointed head 18650 battery (not included in the package)
Battery number	24 pcs

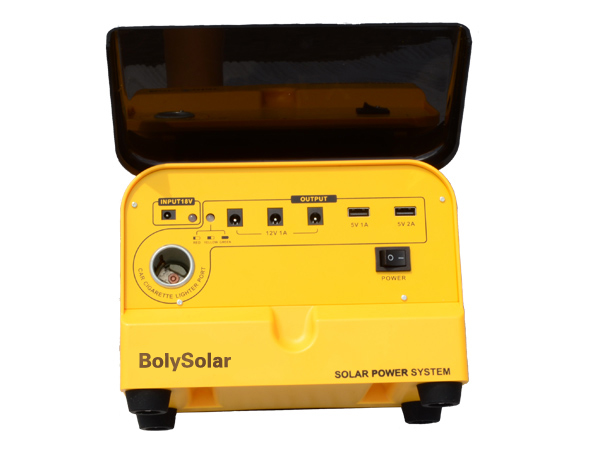

Mobility Controller
Main function	Overcharge protection; Over discharge protection; Anti-reverse, etc
Power loss	≤5%
Total capacity	USB (5V/1A); USB (5V/2A); DC (12V/1A) 3pcs; DC port for car charge

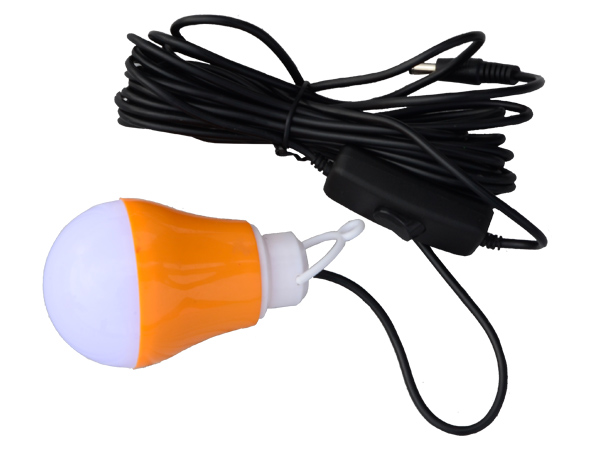

LED with cable
Power	3W
Voltage	12V
Luminous efficiency	120-165Lm/W
Light fade rate	1000H<1%
Cable length	5M
